| ENERGY |
EXTENDED LIFE & TEMPERATURE |
|||||
| VL 34570 xlr | MP 144350 xlr | MP 174865 xlr | MP 176065 xlr | MP 174565 xtd | MP 176065 xtd | |
| Form factor | Cylindrical D | Prismatic | Prismatic | |||
| Nominal voltage | 3.65 V | 3.65 V | 3.65 V | 3.65 V | 3.65 V | 3.65 V |
| Nominal capacity | 5.4 Ah | 2.6 Ah | 5.3 Ah | 6.8 Ah | 4.0 Ah | 5.6 Ah |
| Max. continuous discharge current | 11.0 A | 5.0 A | 10.0 A | 14.0 A | 8.0 A | 11.0 A |
| Max. pulse discharge rate | 21.0 A | 10.0 A | 21.0 A | 27.0 A | 16.0 A | 22.0 A |
| Max. charge current | 5.4 A | 2.6 A | 5.0 A | 6.8 A | 4.0 A | 5.6 A |
| Cycle life （Cycled to 70 % of the cells original capacity） |
>3600 （100 % DoD, C/2-C/2, + 20°C） |
1100 （100 % DoD, C-C/2, + 20°C） |
950 （100 % DoD, C-C/2, + 20°C） |
1800 （100 % DoD, C-C/2, + 20°C） |
2700 （100 % DoD, C-C/2, + 25°C） |
2700 （100 % DoD, C-C/2, + 25°C） |
| Typical weight | 130 g | 66 g | 121 g | 150 g | 97 g | 135 g |

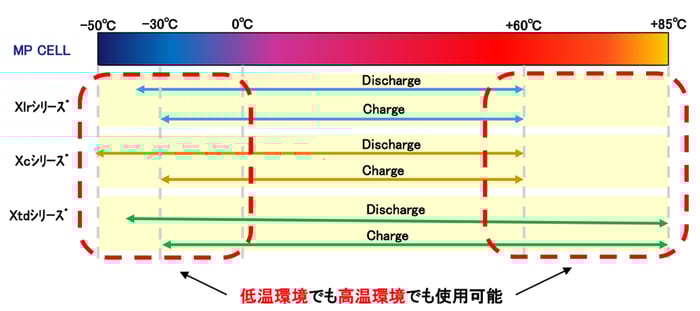

| Discharge temperature range | - 35 / + 60°C | - 35 / + 60°C | - 35 / + 60°C | - 35 / + 60°C | - 40 / + 85°C | - 40 / + 85°C |
| Charge temperature range | - 35 / + 60°C | - 35 / + 60°C | - 35 / + 60°C | - 35 / + 60°C | - 30 / + 85°C | - 30 / + 85°C |
 |
 |
 |
 |
 |
 |
|
| IECEx certified component cells and batteries - IEC 60079-11 （10.5.2 and 10.5.3 （b） |
||||
| MP 174565 ise¹ | MP 176065 ise¹ | 1s1p INT174565 isr FL | 1s1p INT176065 isr FL | |
| IECEx ExTR | FR/INE/ ExTR18.0022/00 |
FR/INE/ ExTR18.0024/00 |
FR/INE/ ExTR19.0047/00 |
FR/INE/ ExTR19.0047/00 |
| Form factor | Prismatic | Prismatic | Prismatic | Prismatic |
| Nominal voltage | 3.65 V | 3.65 V | 3.65 V | 3.65 V |
| Nominal capacity | 4.0 Ah | 5.6 Ah | 4.0 Ah | 5.6 Ah |
| Max. continuous discharge current | 8.0 A | 11.0 A | 8.0 A | 11 A |
| Max. pulse discharge rate | 16.0 A | 22.0 A | 16.0 A | 22.0 A |
| Max. charge current | 4.0 A | 5.6 A | 4.0 A | 5.6 |
| Cycle life (Cycled to 70 % of the cells original capacity) |
2300 （100 % DoD, 2-C/C, + 25°C） |
2200 （100 % DoD, 2-C/C, + 25°C） |
2300 （100 % DoD, 2-C/C, + 25°C） |
2200 （100 % DoD, 2-C/C, + 25°C） |
| Typical weight | 97 g | 135 g | 107 g | 155 g |
| Discharge temperature range | - 30 / + 60°C | - 30 / + 60°C | - 30 / + 60°C | - 30 / + 60°C |
| Charge temperature range | - 30 / + 60°C | - 30 / + 60°C | - 30 / + 60°C | - 30 / + 60°C |
| Part number | 70345Q | 70346R | 70462J | 70463K |
 |
 |
 |
 |
|
